| Item No.:VNTK784E |

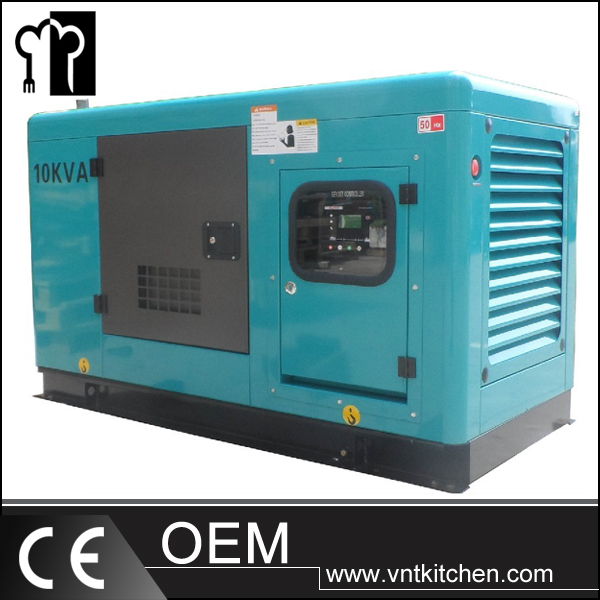

| Product Name:Water Cool Generator Set |
|
Details:
|
Generator Set Power
|
Prime power:8kw/10kva,Max power: 9kw/11kva
|
|
Generator Powered by YANGDONG Engine
|
|
Diesel Engine Model
|
Y385G
|
|
Engine Characters
|
Water-cooled, in line, 3-cycle, direct injection, 1500rpm
|
|
Bore x Stroke (mm)
|
85x90
|
|
Rated Output
|
11kw/13.75kva
|
|
Fuel Consumption (g/kw.hr)
|
﹤262
|
|
Lube Consumption (g/kw.hr)
|
﹤2.72
|
|
Compression Ratio
|
18
|
|
Starting
|
Electric (12V)
|
|
ALTERNATOR MODEL
|
LEADTECH 164B
|
|
Rated Power
|
8kw/10kva
|
|
Voltage (V)
|
380/220v
|
|
Current (A)
|
13
|
|
Frequency (Hz)
|
50
|
|
Power Factor (cos￠)
|
0.8
|
|
Brush/Brushless
|
Brushless
|
|
Dimensions (LxWxH) mm
|
S: 1700x960x1060
|
|
Gross Weight (KGS)
|
500
|
|
20FT
|
12 PCS
|
|
Generator Set Power
|
Prime power:10kw/12kva, Max power:10.8kw/13kva
|
|
Generator Powered by YANGDONG Engine
|
|
Diesel Engine Model
|
Y480G
|
|
Engine Characters
|
Water-cooled, in line, 4-cycle, direct injection, 1500rpm
|
|
Bore x Stroke (mm)
|
80x95
|
|
Rated Output
|
14kw/17.5kva
|
|
Fuel Consumption (g/kw.hr)
|
﹤262
|
|
Lube Consumption (g/kw.hr)
|
﹤2.72
|
|
Compression Ratio
|
18
|
|
Starting
|
Electric (12V)
|
|
ALTERNATOR MODEL
|
LEADTECH 164C
|
|
Rated Power
|
10.8kw/13.5kva
|
|
Voltage (V)
|
380/220v
|
|
Current (A)
|
18A
|
|
Frequency (Hz)
|
50
|
|
Power Factor (cos￠)
|
0.8
|
|
Brush/Brushless
|
Brushless
|
|
Dimensions (LxWxH) mm
|
S: 1700x960x1060
|
|
Gross Weight (KGS)
|
550
|
|
20FT
|
12 PCS
|
|
Generator Set Power
|
Prime power:12kw/15kva, Max power:12.8kw/16kva
|
|
Generator Powered by YANGDONG Engine
|
|
Diesel Engine Model
|
Y485G
|
|
Engine Characters
|
Water-cooled, in line, 4-cycle, direct injection, 1500rpm
|
|
Bore x Stroke (mm)
|
85x95
|
|
Rated Output
|
17kw/21kva
|
|
Fuel Consumption (g/kw.hr)
|
﹤262
|
|
Lube Consumption (g/kw.hr)
|
﹤2.72
|
|
Compression Ratio
|
18
|
|
Starting
|
Electric (12V)
|
|
ALTERNATOR MODEL
|
LEADTECH 164D
|
|
Rated Power
|
12.8kw/16kva
|
|
Voltage (V)
|
380/220v
|
|
Current (A)
|
22A
|
|
Frequency (Hz)
|
50
|
|
Power Factor (cos￠)
|
0.8
|
|
Brush/Brushless
|
Brushless
|
|
Dimensions (LxWxH) mm
|
S: 1700x960x1060
|
|
Gross Weight (KGS)
|
600
|
|
20FT
|
12 PCS
|
|
|
|
|
|
